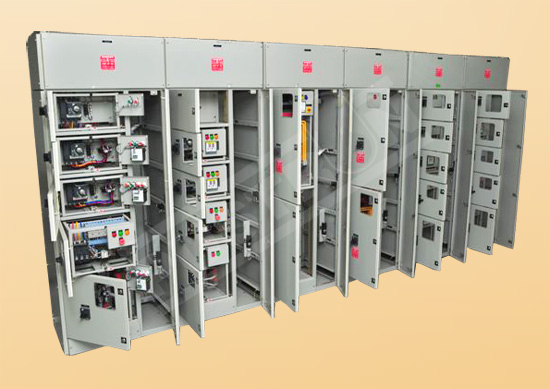

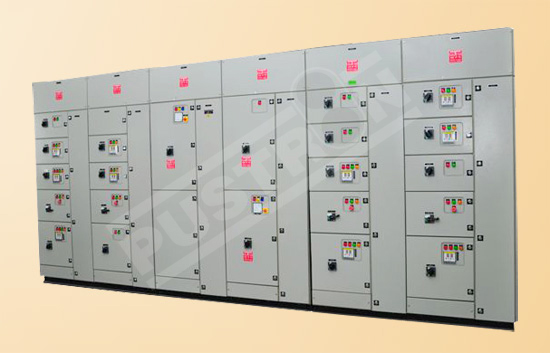

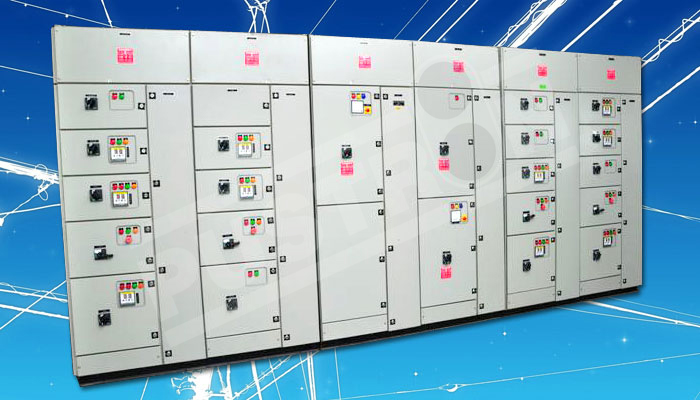

Medium & low voltage draw-out switchgear panels are manufactured in different current and voltage levels, short circuit currents in metal enclosed type according to client request. Type test certification by CPRI upto 65 kA is available.

Manufactured under continuous quality monitoring system helps to create world class product, every time…

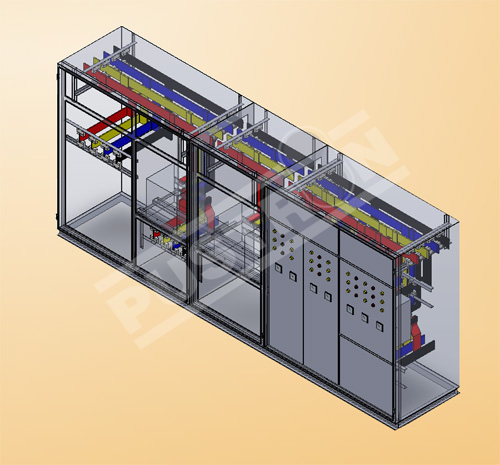

Free standing panels for Industrial applications , expandable or extendable by adding cells.

Internal & External Powder coating cover with RAL 7032 or any other custom color.

Installation possibility for different type of Fan, Heater, Lighting system, Cooler & ventilation systems etc.

Index of protection degree IP 42 ~ 55 according to client requirement.

Rated Voltage	Rated current Busbar	Rated current Branch	Rated Peak current	Rated shorttime current	Short circuit duration
415 V	Up to 3200 A	Up to 3200 A	Up to 143 kA	Up to 65 kA	1 sec.
17.5 kV	Up to 4000 A	Up to 4000 A	Up to 125 kA	Up to 65 kA	3 sec.
24 kV	Up to 2000 A	Up to 2000 A	63 kA	25 kA	1 sec.

Rated Voltage

Rated current Busbar

Rated current Branch

Rated Peak current

Rated shorttime current

Short circuit duration

415 V

Up to 3200 A

Up to 143 kA

Up to 65 kA

1 sec.

17.5 kV

Up to 4000 A

Up to 125 kA

Up to 65 kA

3 sec.

24 kV

Up to 2000 A

63 kA

25 kA

1 sec.

MCC & PCC

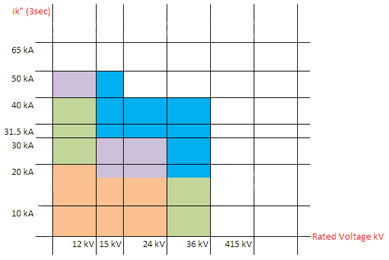

Technical Data for PCC / MCC

Electrical Panels & Accessories

MCC & PCC

MLDB

MPDB

APFCR / RTPFC

Technical Data for MCC / PCC

MCC / PCC

This product is built to last and give a maintenance free performance, year after year.
